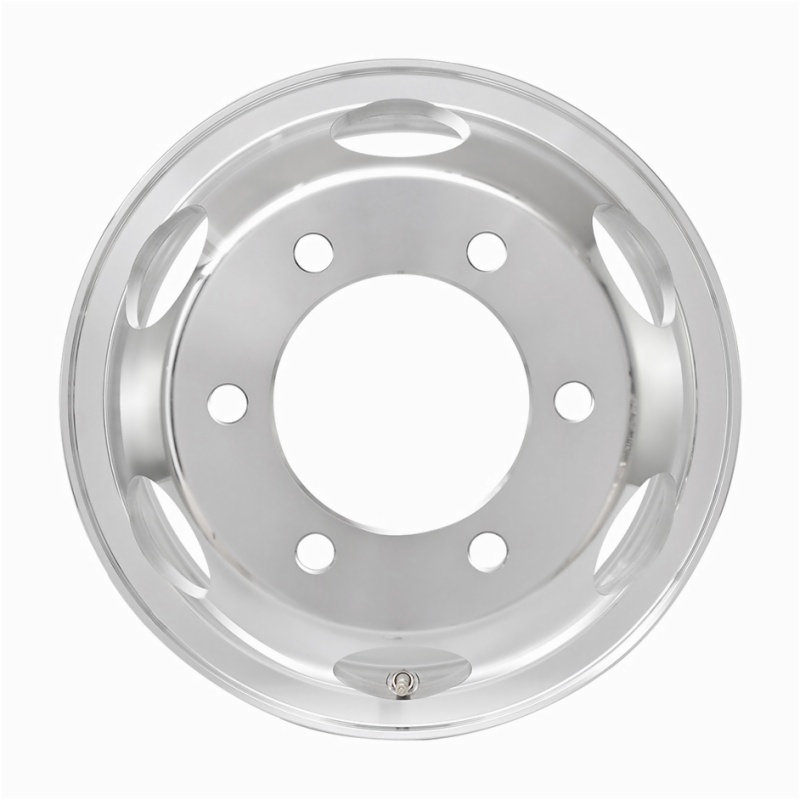

PDW Light Weight

This on highway, transit wheel model consists 6 bolt holes. This structure is for wheels with 16″ or less in dimension. These models are usually for light commercial vehicles such as Fiat Iveco, Totoya Coaster, Isuzu light truck, etc. These wheels have ultimate light weight & good balance. Easy driving can be easily enjoyed once they are installed.

Faq

Product Feature

01
This structure is for wheels with 16” or less in dimension.
02
This on highway, transit wheel model consists 6 bolt holes.
03
These models are usually for light commercial vehicles such as Fiat Iveco, Totoya Coaster, Isuzu light truck, etc.
04
These wheels have ultimate light weight & good balance.
05
Easy driving can be easily enjoyed once they are installed.

Specification

Part No.(For Machined Only) Size Max Load(KGS) ET(mm) CB(mm) H/PCD(mm) Bolt Hole(mm) Valve
04.02.20 16.0×5.50 1500 105/121 164.1 6/222.25 24 60MS-27N
04.02.19 16.0×6.00 1500 112/128 164.1 6/222.25 24 60MS-27N

Faq

A: Yes, we are a leading-factory of wheels industry;

A: Three millions per year;

A: Gravity casting/ Low pressure casting/ Flow forged/ Forged

A: Passenger/ 4*4/ trailer/ ATV/UTV/MOTOR…ect.

A: Full paint as black/silver/gunmetal… Machine face/lip/Milling Polish/Chrome/Brush

A: a. normal casting wheels 100 pcs; b. forged wheels one set

A: Product code, SIZE, PCD, ET, CB , Finish, Quantity.

A: a. Normal casting wheels can accept samples from existing stock; b. Forged wheels can accept one set new production as sample;

A: a.FOB Ningbo; b. CIF/CFR; c. DDP

A: a. T/T-30% deposit,70% at sight of B/L b. L/C at sight; c. OA after insurance credit inspect;

A: a. JWL/VIA/JWL-T standard testing; b. ISO/TS16949, ISO14001 c. TUV/TSE/SAE according to exact market

A: a. Structure: warranty – lifetime b. Painting: warranty – two years;
