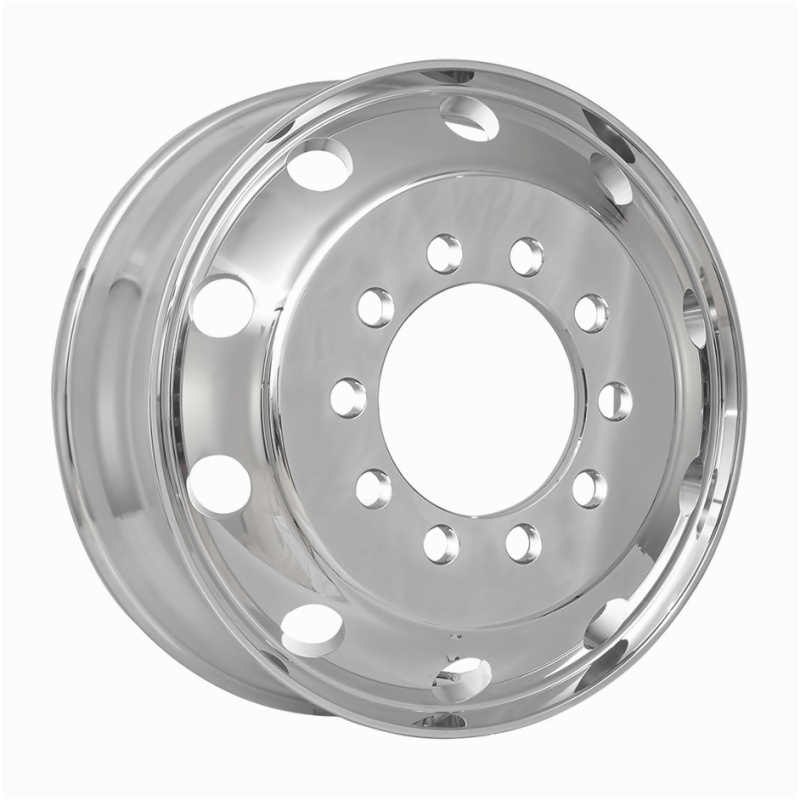

PDW Heavy Duty

This on highway, transit wheel model consists of 10 bolt holes. This structure is for wheels with 22.5″ & up in dimension. These models are the mainstream of all heavy-duty trucks, trailers, as well as coaches. In addition to the savings in weight, with these wheels, you also benefit from special strength and high resistance thanks to the global highest forging tonnage.

Faq

Product Feature

01
This on highway, transit wheel model consists 10 bolt holes.
02
This structure is for wheels with 22.5” & up in dimension.
03
These models are the main stream of all heavy duty trucks, trailers, as well as coaches. In addition to the savings in weight, with these wheels you also benefit from special strength and high resistance thanks to the global highest forging tonnage
04
These models are the main stream of all heavy duty trucks, trailers, as well as coaches. In addition to the savings in weight, with these wheels you also benefit from special strength and high resistance thanks to the global highest forging tonnage
05
These models are the main stream of all heavy duty trucks, trailers, as well as coaches. In addition to the savings in weight, with these wheels you also benefit from special strength and high resistance thanks to the global highest forging tonnage

Specification

Part No.(For Machined Only) Size Max Load(KGS) ET(mm) CB(mm) H/PCD(mm) Bolt Hole(mm) Valve
04.02.24 22.5×6.75 2880 128/150 221.1 10/285.75 32 TR544D
04.02.25 22.5×7.50 3550 133.5/156.5 281.2 10/335 32 70MS-07
04.02.26 22.5×7.50 3550 133.5/156.5 220 10/285.75 32 TR544D
04.02.03 22.5×8.25 3365 144.5/166 220 10/285.75 26 TR544D
04.02.06 22.5×8.25 3550 144/167 281 10/335 26 70MS-07N
04.02.27 22.5×8.25 3650 144/167 220 10/285.75 26 TR544D
04.02.28 22.5×9.00 4125 152.5/176 281.2 10/335 26.75 70MS-07
04.02.29 22.5×9.00 4125 152.5/176 220 10/285.75 26.75 TR544D
04.02.31 22.5×13.0 5000 -1 281.2 10/335 26.5 TR543E
04.02.32 24.5×8.25 3356 144/168 220 10/285.75 32.5R22 TR544D

Faq

A: Yes, we are a leading-factory of wheels industry;

A: Three millions per year;

A: Gravity casting/ Low pressure casting/ Flow forged/ Forged

A: Passenger/ 4*4/ trailer/ ATV/UTV/MOTOR…ect.

A: Full paint as black/silver/gunmetal… Machine face/lip/Milling Polish/Chrome/Brush

A: a. normal casting wheels 100 pcs; b. forged wheels one set

A: Product code, SIZE, PCD, ET, CB , Finish, Quantity.

A: a. Normal casting wheels can accept samples from existing stock; b. Forged wheels can accept one set new production as sample;

A: a.FOB Ningbo; b. CIF/CFR; c. DDP

A: a. T/T-30% deposit,70% at sight of B/L b. L/C at sight; c. OA after insurance credit inspect;

A: a. JWL/VIA/JWL-T standard testing; b. ISO/TS16949, ISO14001 c. TUV/TSE/SAE according to exact market

A: a. Structure: warranty – lifetime b. Painting: warranty – two years;
